一、General Description

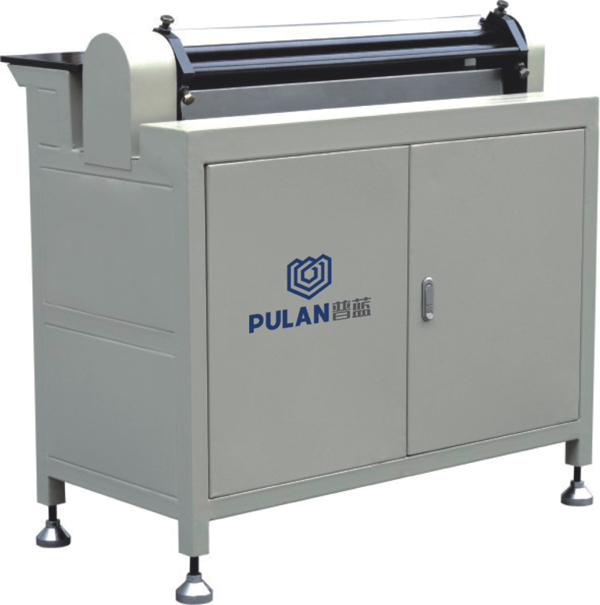

This tri-rollers designed machine is mainly used for rolling the inner outer wire mesh of the air filter element and the shell of the air filter assembles.
二、Specification
1、Product capability：6pcs/min
2、Rolling height：≤800mm
3、Rolling diameter：Φ120~Φ350mm
4、Steel thickness：0.3mm~1.2mm
5、Motor power：0.75kw
6、Power supply：380V/50Hz
7、M/C weight：400kg
8、M/C dimension：1100×1000×1050mm(L×W×H)
