一、General description

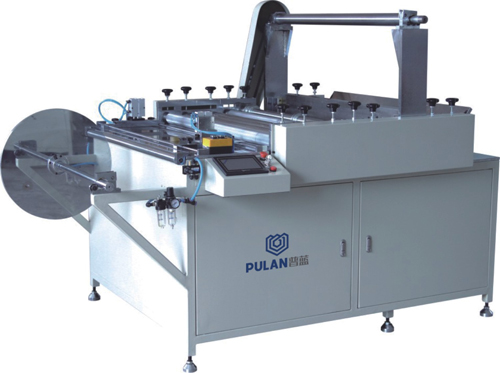

This machine is applicable to the air filter of the inner and outer mesh roll round.
二、Specification
1、Product capacity:15pcs/min
2、Crimping height:1000mm
3、Roll diameter:Ф80-Ф350
4、The thickness of the steel plate rolling:0.3-1.2mm
5、motor Power:1.5kW
6、Power supply: 380v/50hz
7、M/C weight:700kg
8、M/C size: 2260×1800×1780mm(L×W×H)
三、Features
1、This machine can cut and roll round automatically according to the product size change.
2、This machine can according to different specifications of the filter height,precise adjustment,cutting size,convenient operation,the cutting effect is smooth,excess waste material can be rolled round.
