一、General Description

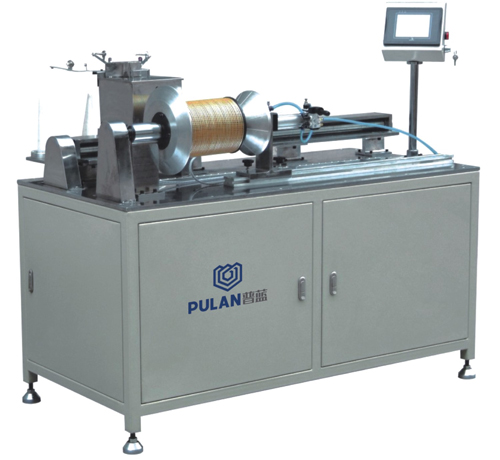

This machine is mainly suitable for big oil filter and air filter cartridge cylindrical winding reinforcement,after winding filter strength,resistance to deformation ability.
二、Specification
1、Seal speed:40pcs/min
2、Filter element diameter:Ф400mm
3、Filter element length:1000mm
4、Main machine power:4.2kw
5、Working air pressure:0.6Mpa
6、Power supply:380v/50Hz
7、Temp.control scope:normal temp.~300℃
8、Main machine size:1500×730×1400(L×W×H)
三、Features
1、This machine is suitable for a plurality of glass fiber line,line,hot melt adhesive intertwined.
2、Product spacing through computer set control,high precision.
3、Winding way products:spiral and circular.
4、Winding in the machine on the line is flat or round,can change the surface change by threading mouth.
