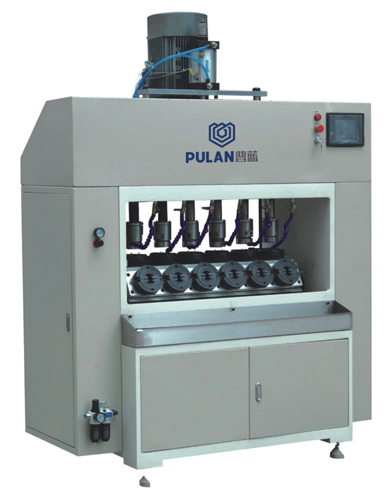

一、Specification
1、product capability：24pcs/min
2、Tapping scope：M16~M38(metric),3/4"~3/2"(inch)
3、Work piece onput number/time：diameter≤M24 6pcs/time;
M26~M30　4pcs/time;    ≥M30,3/2"　2pcs/time;
4、Work piece scope：Φ60mm~Φ130mm
5、Tap fixed ID：Φ23mm
6、Motor power：5.8KW
7、Cooling pump power：120W
8、Working air pressure：0.6MPa
9、Power supply：380V/50Hz
10、M/C weight：1200kg
11、M/C size：1560×710×2050mm(L×W×H)
二、 Features
1、All spare parts are precisely made, to ensure the work piece vertical to the screw tap.
2、The tapping parts set the spray cooling system to keep the work piece smooth and the tap durable.
3、 This machine work automatically, The main axis tapping in counter clockwise, and rapid turning back after finished tapping, then turning oppositely, the chained convey, fix the work piece and travel control all work automatically.
4、This high efficiency machine can tap six work pieces each time.
5、This clever machine is computerized by PLC control, and simple to operate.
三、Applications
It is mainly used for tapping the bottom plate of oil and fuel filters.
