一、General description

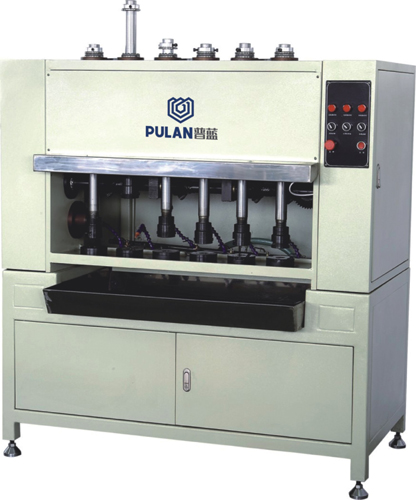

This equipment is mainly used for automobile, diesel filter cover thread tapping machine.
二、Specification
1、Production capacity: 10 pieces / minute
2、Spindle number: 6 axis
3、Spindle travel: 160mm
4、Spindle speed: 63 rpm/min
5、Tapping scope:M16~M38(metric),3/4”~1½(inch)
6、Work range: Ф60~Ф130mm
7、Motor power: 2.2KW
8、power supply : 380V/50Hz
9、M/C weight: 550kg
10、M/C size: 820×1400×1500mm(L×W×H)
三、Features
1、Work in a whole to ensure the work piece vertical to the screw top.
2、The machine adopts multistage reduction device and work with six axis,which has well-knit structure,smooth work and high efficiency.
3、The tapping part sets the spray cooling system which can keep the work-piece smooth and durable.
