一、Specification
1、Product capability: 12~18pcs/min
2、Filter paper height:30~250mm
3、Pleating height:10~38mm
4、Sizes of Steel strips: a)thickness 0.25~0.3mm    b)width 12mm   c)coiled material Ф inner Dia.＞150mm、Ф outer Dia.＜600mm
5、Motor power: 200W
6、Power supply:220V/50hz
7、Working sir pressure:0.6Mpa
8、M/C weight: 500kg
9、M/C size: 2080×1000×1400mm(L×W×H)
二、Features
1、The whole working process of the steel strip forming-clipping-cutting-resuming is automatically finished by the PLC control pneumatic and machine.it is fast speed and high efficiency.
2、The steel strip clip the filter paper ends tightly to prevent the filter element from leakage.
3、The clipping height and width are easily to be adjusted and keep consistency as well.
4、The computer monitor control is used,which is easy operation.
5、The are 25 clip and convey stations,it is fast speed and high efficiency.
6、This machine has the cylinder un-loading device,it is high degree of the automatic.
三、Applications

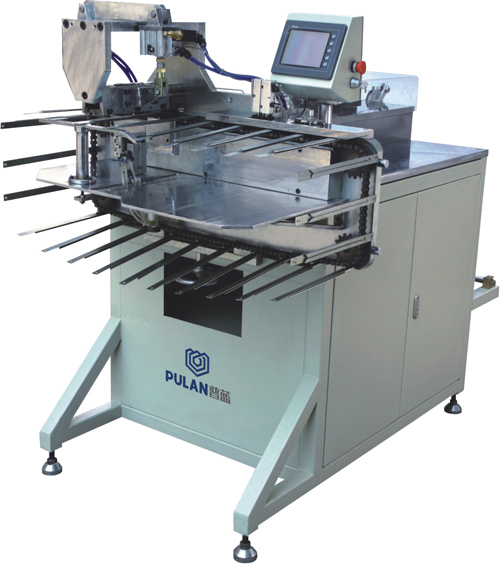

This machine is professionally used for clipping the paper ends using the steel strip.
