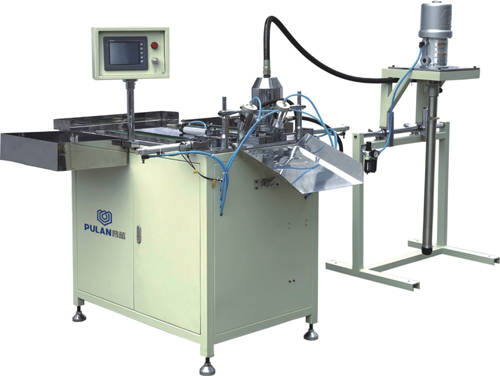

一、Consists
1、main machine
2、import pump
3、computer control box
二、Specification
1、Available ID of the end cap: Ф60mm~Ф100mm
2、Max end caps output number/time:2pcs/time
3、Speed: 15pairs/min
4、Validity of glue: ≦50000cp
5、Glue kind:PVC(high temp.solidified adhesive)
6、Power supply:380v/50hz
7、Conveyor motor power:0.75kw
8、Tray motor power:90W
9、Working air pressure: 0.6Mpa
10、Pump air pressure:≦0.45mpa
11、M/C weight: 400kg
12、M/C size: 1600×1980×1430mm(L×W×H)
三、Features
1、Simple and easy to adjust the action of the cap conveying and glue dispensing by computer control.So to make it work consistently and steadily.
2、The compounded has the function of even glue while glue dispensing,so the glue on the end cap will be evenly.Also glue the up-down caps at the same time to develop the efficiency and easy for the nest process.
3、This machine has the function of high efficiency and easy operation.
4、Adopts import pump,to ensure correct gluing out amount.
5、This machine is equiped with glue storage,go make it glued evenly.
四、Applications
This machine is used for glue dispensing on the up&down end caps of the spin on filter element.
