一、Consists

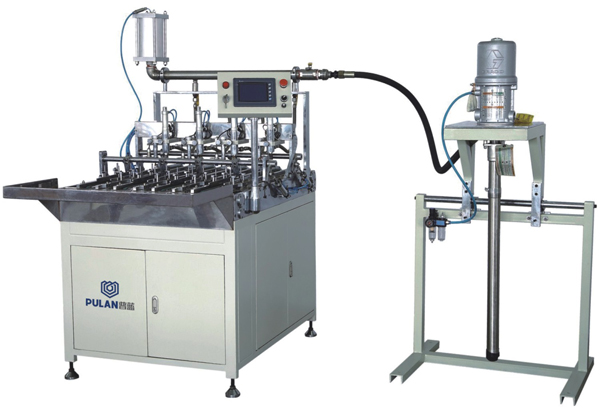

1、hot gluing machine
2、import pump
3、computer control box
二、Specification
1、Available ID of the end cap：Φ50~Φ110mm
2、Max end caps onput number/time：4PCS/time
3、Speed：30-50 pcs/min
4、Viscidity of glue：≤50000CP
5、Glue kind：PVC(high temp.solidified adhesive)
6、Power supply：380V/50Hz
7、Conveyer motor power：120 W+750W
8、Working air pressure：0.6MPa
10、Pump air pressure：≤0.45MPa
11、M/C weight：400kg
12、M/C size：1600×1600×1800mm(L×W×H)
三、Features
1、The action of end caps loading and gluing can be regulated easily by computer control ,so it is coordinate and work normally.
2、This machine has the function of evenly gluing on the end cap of the fillter.
3、This machine has excellent characteristics such as high efficiency and easy operation.
4、Adopts import gluing pump guarantee for accurately gluing.
5、Specially equipped the gluing tanks which make gluing much more evenly.
四、Applications
This machine is used for glue dispensing PVC on the end caps of the filter element.
