I Specification
1. Filter diameter range: Φ55- Φ110mm
2. Printing speed: 35-45 pcs/min
3. Filter height: 60mm-150mm
4. Working air pressure: 0.6Mpa
5. Main motor power: 0.75Kw
6. Conveyer motor power: 120W
7. Power supply: 380V/50HZ
8. M/C weight: 500kg
9. M/C dimension: 2100*1500* 1915mm（L*W*H）
II Features
1.This machine adopts the cams composite structure, which is running stable and precisely location.

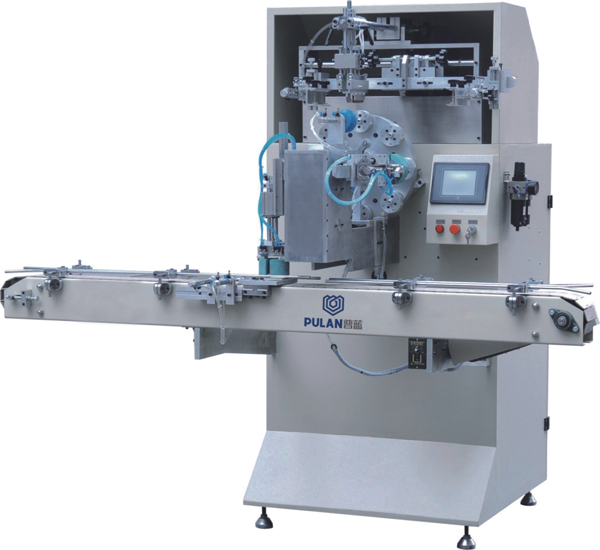

2.This full automatic silk printing machine has the automatic circulation of up-loading, printing and down-loading by arm robot.
3.This is monitor controlled and simple operation.
III Applications
This high speed silk screen printer is used for printing on the shells of the spin-on filters.
