一、Specification
1、Product capability：12 cans/min
2、Seaming diameter：Φ50~Φ130mm
3、Filter assemble height：50~300mm
4、steel thickness range：0.5~1mm
5、Mainpowr：0.75kw
6、Working air pressure：0.6MPa
7、Power supply：380V/50Hz
8、M/C weight：800kg
9、M/C dimension：1020×1250×1900mm（L×W×H）
二、Features
1、This strong structure designed machine has the circulation function,and its electric control is easy to operate.
2、 This high degree of automatic machine has the completely auto seaming circulation of the filter parts loading-clutch-seaming rollers advance and retreat.It is high efficiency and good seaming quality.
3、This machine adopts the inverted seaming ways ,and far develop its working efficiency.
4、 The motor of the seaming machine equips the brake device which will avoid the inner pressing mold of loosening.Then the filters are seamed with high quality.
三、 Applications

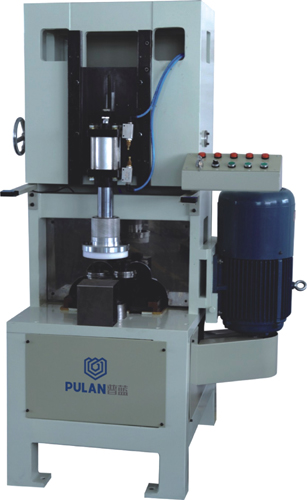

This machine is mainly used for seaming the shells of the spin-on oil & fuel filters.
