一、General Description

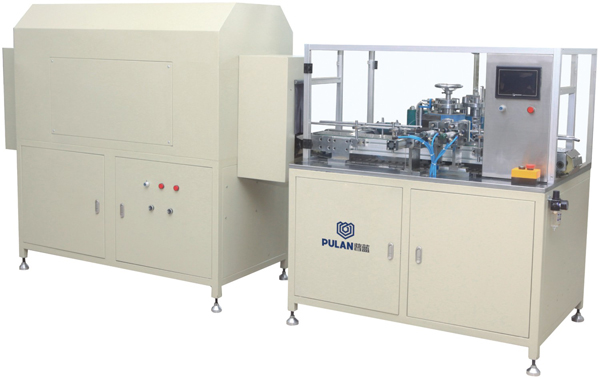

The machine is suitable for circular filter shell double color or monochrome printing and drying.
二、Specification
1、Seal speed:40pcs/min
2、Filter diameter range:60mm-110mm
3、Filter height:60m-140m
4、Motor power:5kw
5、Working air pressure:0.6Mpa
6、Power supply:380v/50Hz
7、M/C dimension:3420×1130×1600(L×W×H)
三、Features
1、The machine with computer control,high degree of automation,printing products,conveying and drying integrated ,fast.
2、The machine printed product font clear,smooth.
3、The machine roll printing templates don’t wear.
