一、General description

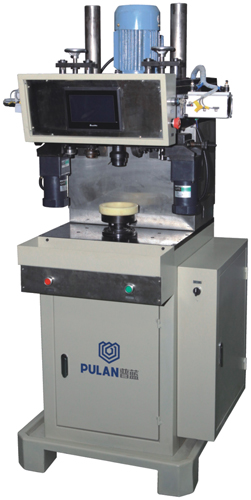

This equipment is mainly used for engineering machinery rotary type filter shell and the seal between the sealing plate.
二、Specification
1、Production capacity: 8 pieces / minute
2、Seal diameter: Ф80- Ф150mm
3、Sealing parts assembly height:200-350mm
4、Suitable for steel plate thickness:0.5~1.5mm
5、Motor total power: 3KW
6、Working pressure: 0.6MPa
7、power supply : 380V/50Hz
8、M/C weight: 500kg
9、M/C size: 900×800×2000mm(L×W×H)
三、Features
1、a complete sealing glue injection, high production efficiency.
2、sealing die feed movement completed by computer operation.
