一、General Description

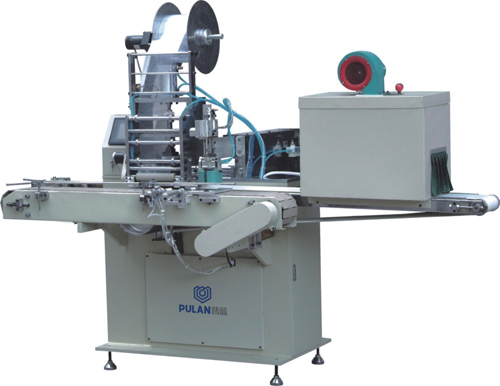

The machine specially used for machine,diesel rotary filter in and out of the oil sealing mouth heat shrinkable film.
二、Specification
1、Seal speed:40pcs/min
2、Filter diameter range:Ф60-Ф110mm
3、Filter height:60m-140m
4、Motor power:8kw
5、Working air pressure:0.6Mpa
6、Power supply:380v/50Hz
7、M/C weight:500kg
8、M/C dimension:2600×1485×1800(l×w×h)
三、Features
1、this machine adopts the cams composite,which is running stably and precisely location.
2、this full automatic sealing machine has the automatic circulation of the shrinking film edge cutting,filter loading in arm robot and curing oven.
