一、General description

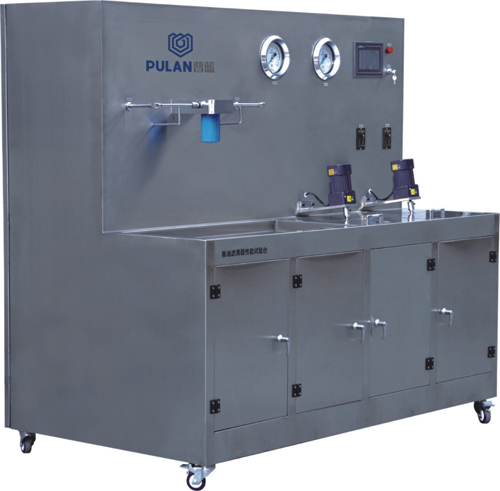

The test bench is used to detect diesel filter filter efficiency and blockage of life.
二、Specification
1、Max.Capacity of oil tank:50L
2、Flow precision: 1grade
3、Temperature precision:≦±1℃
4、Pressure precision:0.5grade
5、Motor power:0.25KW
6、Working pressure: 0.6MPa
7、power supply : 380V/50Hz
8、M/C weight: 500kg
10、M/C size: 1500×810×1620mm(L×W×H)
三、Features
1、It is mechanical-electrical-pneumatic integration,with structure compact and easy to be operate,and high automatic degree.
2、Using the U type pressure gauge, pressure gauge measurement system of double precision pressure gauge.
3、Mixing system is utilized to make the impurities and oil evenly blended.
4、Equipped two 0.8μm stainless steel precise filters to ensure the testing oil clean.
5、The working table and oil tank are all made of stainless steel,and the pipelines uses excellent copper tubing and couple r.
6、Test criterion:JB/T8122-1999,ISO4020.
