一、General description

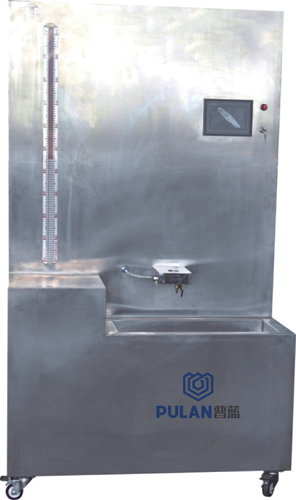

The machine can be used for determination in the installation of backspin installed on oil filter check valve to prevent oil from the interior of the filter loss the ability.
二、Specification
1、Oil pump flow:5L/min
2、Temperature control:normal temp.~100℃
3、Oil tank capacity:20L
4、Motor power:0.25KW
5、power supply : 380V/50Hz
6、M/C weight: 300kg
7、M/C size: 1300×715×1160mm(L×W×H)
三、Features
1、Automatically control the calibrated oil level.
2、Test the work table and the tank is made of stainless steel, pipe are made of high quality copper pipe and pipe joint.
3、Test criterion:JB/T6725-93,ISO4548.
