一、General description

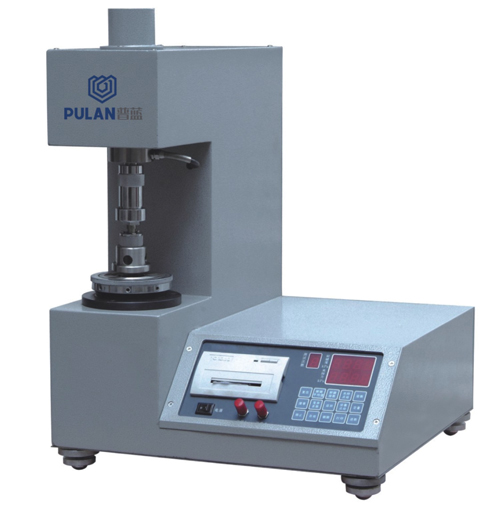

The paper bursting tester is a new generation of development and production of our factory paper measurement test instrument of breaking resistance,it uses a miniature SPU as the core monitoring means,so as to realize the detection,control and data processing of all digital, computer of. The regulations and requirements of the ISO2758 the bursting strength of paper to determine ", QB / t the paper and cardboard resistance to breaking" and GB454 the bursting strength of paper determination of law and standards are in line with the technical parameters and performance indicators. The instrument has the advantages of simple operation, reliable performance, advanced technology, is the ideal equipment for scientific research units, paper manufacturers, packaging industry, quality inspection departments indispensable.
二、Specification
1、Measuring range:30~2000kpa
2、Resolution: 1kpa
3、Accuracy:±1％
4、Pressure speed: 95±5ml/min
5、Sample clamping force: more than 1200kPa
6、Film resistance: raised 9mm, the pressure was 30 + 5kpa
7、Sample size: clip clamping ring aperture (30.5±0.05)
8、Under the clamp ring aperture:Ф33.1±0.05
9、Motor power: 350W
