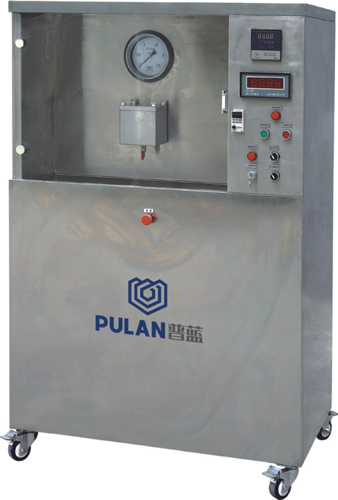

一、General description
This machine can be used to bypass valve flow characteristics, measurement, filter through sealing, opening pressure, reset performance etc..
二、Specification
1、Test flow:0~25L/min
2、Oil pump flow:40L/min
3、Temperature control:normal temp.~100℃
4、Motor power:0.75KW
5、power supply : 220V/50Hz
6、M/C weight: 300kg
7、M/C size: 1000×600×1560mm(L×W×H)
三、Features
1、The bypass circuit and double step less speed regulation system to regulate the flow and pressure test.
2、using high precision turbine flow meter to measure flow rate.
3、Using precision pressure gauge to measure pressure.
4、Test criterion:SAE HS806,ISO4548.
