一、General Description

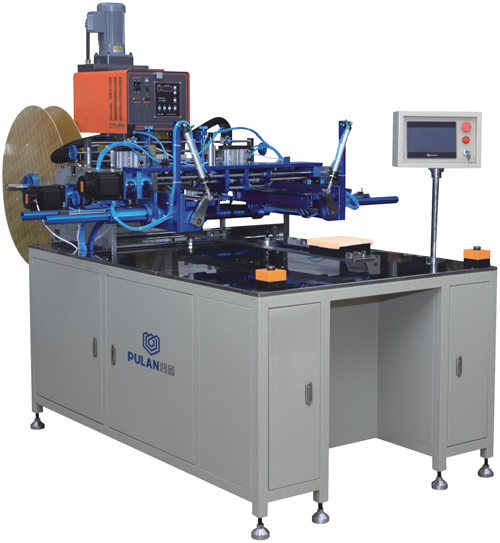

After folding filter,the machine is suitable for air conditioning will be coated with hot melt adhesive with strip non-woven fabric or paper on both sides of the filter paper.
二、Specification
1、Seal speed:15pcs/min
2、Product height:500mm
3、Product width:400mm
4、Adjustable pleating height:50mm
5、Output of the machine:8kw
6、Working air pressure:0.6Mpa
7、Power supply:380v/50Hz
8、Main M/C dimension:2660×1760×1950(L×W×H)
9、M/C weight:700kg
三、Features
1、The machine has a length of edge glue,cut and paste is controlled by computer to adjust.
2、On both sides of the paste machine speed,paste the positioning accuracy.
3、Product specifications can adjust at will.
