一、General Description

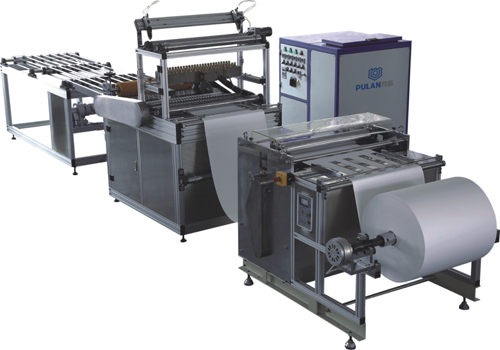

This machine is professionally designed and used for Mini pleating and hot melt dispensing on the fiber glass or polypropylene, and is able to match different specifications of the filter elements, which is characterized with high productive efficient and simple operation.
二、Specification
1、Max.width：700mm
2、Adjustable pleating height：20~100mm(any six specifications among the range)
3、Speed：4~10m/min
4、The interval of gluing：25.4mm
5、The number of gluing：2×26Lines
6、Power supply：380V/50Hz
7、Output of the machine：16kw
8、Working air pressure：0.6MPa
9、M/C weight：700kg
10、Hot melt applicator size：1100×900×1300mm(L×W×H)
11、Main machine size：6520×1140×1750mm(L×W×H)
三、 Features
1、 Glue dispensing and paper folding are both performed in the identical machine. After paper collected, the filter paper is conversed by longer conveyer belt, which helps to solidify the hot melt and get needed length.
2、The main frame and conveying mechanism are controlled by frequency converter which is easy to adjust.
3、 The filter material's journey after glued can be regulated among certain scopes. Which avails the dryness and humidity of hot melt and good for firmly folded.
4、Set xix pairs of rollers together in a round table, which is easier to change and apply to produce in different specifications.
5、Melt quickly, the glue dispensing quantity can be easily controlled by frequency converter.
6、High productive efficiency, good smoothness.
Furthermore, we can customize the paper-pleating production line of different specifications.
