一、General Description

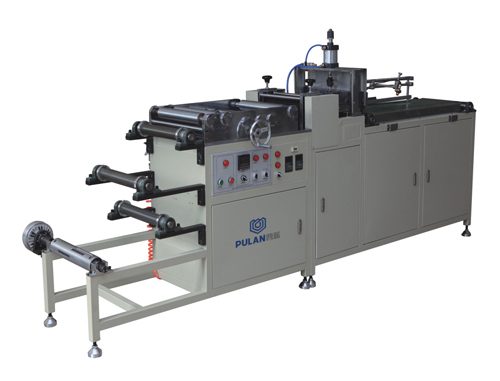

It is technically used in shaping the aluminum foil corrugation of separated high efficiency filter.
二、Specification
1、Max.width：300mm
2、Max.Coil diameter：1000mm
3、Customize the rollers according to the pleating height and pitch of waves.
4、Speed：20 sheets/min(length：500mm)
5、Motor power：0.75kw
6、Power supply：380V/50Hz
7、Working air pressure：0.6MPa
8、M/C weight：600kg
9、M/C size：3400×510×1600mm(L×W×H)
三、 Features
1、The roller speed can be controlled through variable-speed motor to accommodate different working conditions.
2、The length can be set freely, and cut off automatically.
3、It is equipped with the aluminum edge-doubled device while corrugating. Which prevent the fiber glass form breaking。
4、Use the gathering cylinder to collect products into the container.
5、High efficiency and simple operation.
