一、Specification
1、Product compatibility:10m/min
2、pleat heights: Any adjustment
3、Paper width:≦650mm
4、Motor power:2kw
5、Power supply:220v/50Hz
6、Working air pressure:0.6Mpa
7、M/C weight:500kg
8、M/C Size:3560×1285×2460(L×W×H)
二、Features
1、The machine fold and fold high are controlled by computer,can be arbitrary adjustment.
2、The machine of glass fiber paper and corrugated molding of aluminum foil and paper can be completed at the same time in the above operation.
3、The machine can be heated in a print mark ,print out the PP filter paper.
4、This machine is equipped with the frequency converter to match different working conditions.
三、Applications

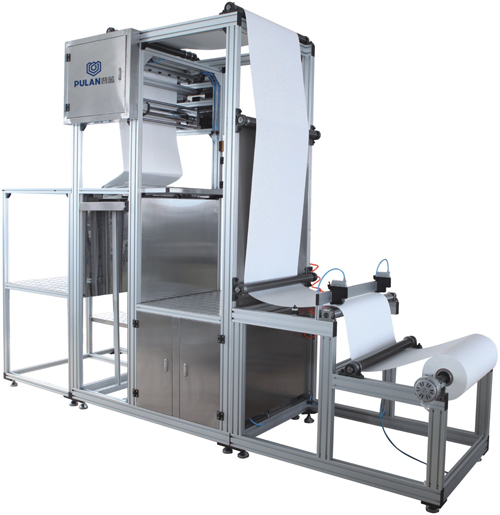

This machine is mainly used for plate glass fiber and PP filter material folding forming.
